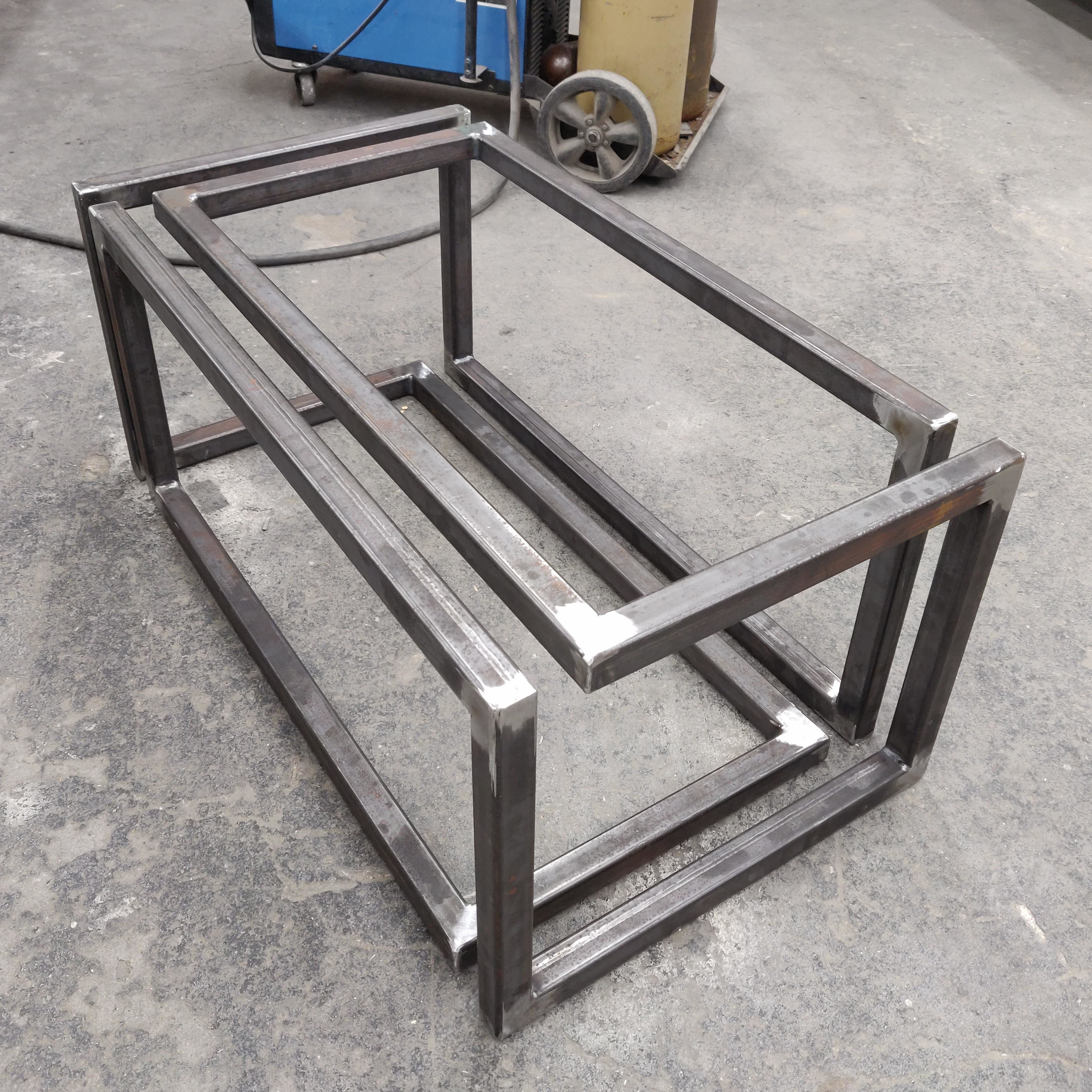

I saw this modification on Reddit to the Infinity Cube and Infinity Prism projects I have previously posted. (Credit to u/MrFaceplant and thanks for letting me use your image!)

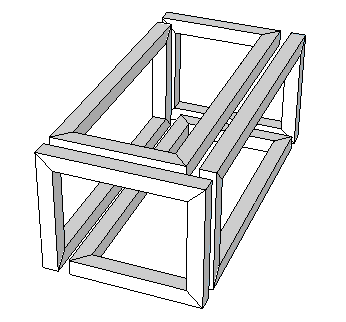

The beauty with this design is that the bottom and all 4 sides have pieces resting on the ground. This significantly improves the stability for a larger table or application that requires it to bear sufficient weight.
Check out my Instagram page for more recent projects and ideas!
While the calculations aren’t as involved in this one, there are more unqiue pieces. Make sure you’ve got all of your lengths correct and miters in the right direction before piecing it together!
Note: The calculator will accept any unit for the input parameters. Just make sure that you are consistent and input all parameters with the same units. The outputs will then be in the same unit as the inputs.
Infinity Cube (Flat) Calculator

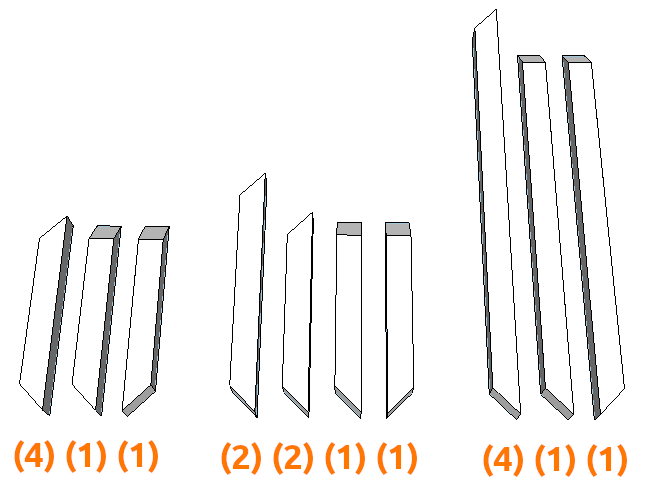

Cut List
The numbers in brackets show the quantity of pieces needed.
Height
- (4) pieces with miters rotated 180 degrees
- (1) piece with miters rotated 90 degrees clockwise
- (1) piece with miters rotated 90 degrees counter clockwise
Width
- (2) long pieces with miters rotated 180 degrees
- (2) short pieces with miters rotated 180 degrees
- (1) short piece with miters rotated 90 degrees clockwise
- (1) short piece with miters rotated 90 degrees counter clockwise
Length
- (4) long pieces with miters rotated 180 degrees
- (1) short piece with miters rotated 90 degrees clockwise
- (1) short piece with miters rotated 90 degrees counter clockwise
The Build
Check out the Infinity Cube Table page for build thoughts and ideas. Make sure to have a few of these Welding Magnets. They will make your life a lot easier!
